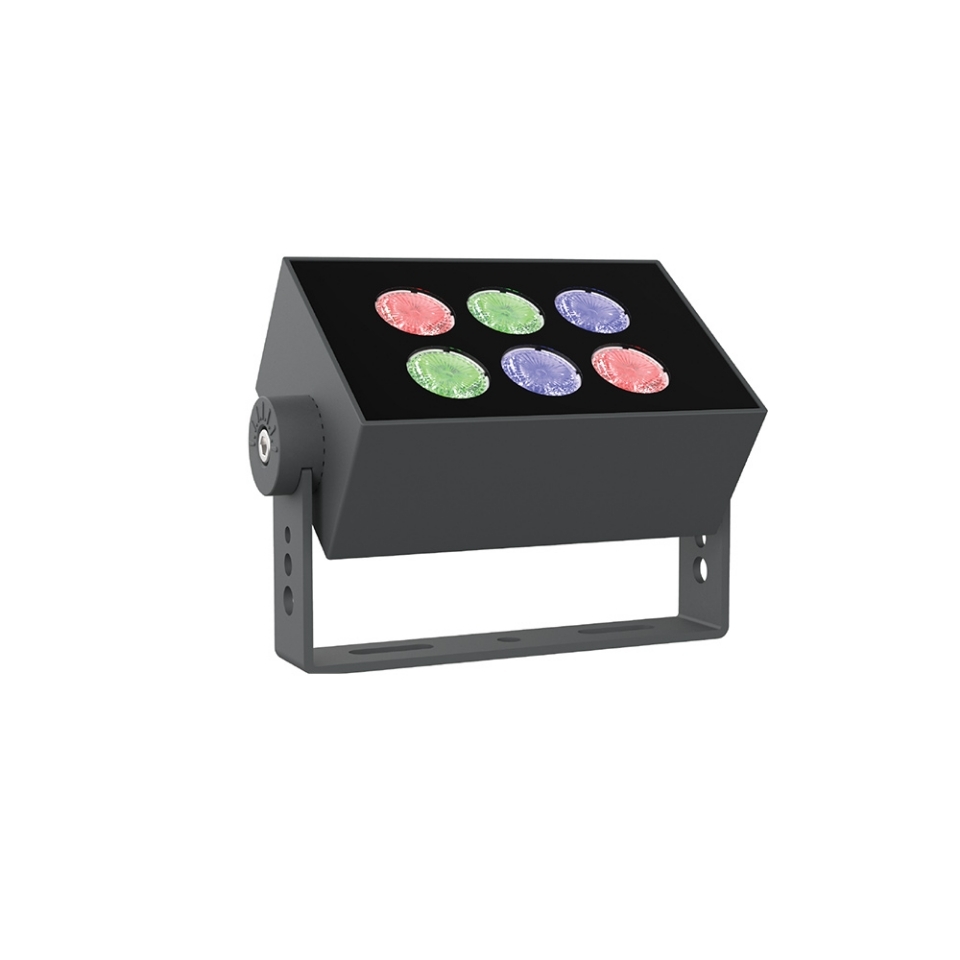

Flood Light 12W

  • Range:
    LED Flood Lights
  • Code:
    JQL-GRY-FL012W
  • Description:

    Power Consumption 12W
    Luminous Flux 870 lm @4000K
    Color Temperature 2700K / 3000K / 4000K / 5000K / 5700K / 6500K / RGB / RGBW
    Beam Angle (50%Imax) 8° / 15° / 30° / 40° / 60° / 80° / 30*60°
    LED Brand CREE / NICHIA / OSRAM / LUMILEDS
    Input Voltage DC24V
    Protection Class IEC III
    Control DMX / RDM / DALI / Remote / ON-OFF
    Power Factor ≥0.95
    Finish Powder coating
    Housing Die-cast aluminum ADC12
    Cover Toughened glass
    Dimensions W113xH70 / W137xH85
    IP Rating IP66 / IP67
    IK Rating IK08
    Mounting Adjustable bracket
    Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
    Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
    THD <10%
    Lifespan >50,000Hrs (Ta=35°C@L70)
    Certificate BIS / CE / RoHS

MRP Price on request
