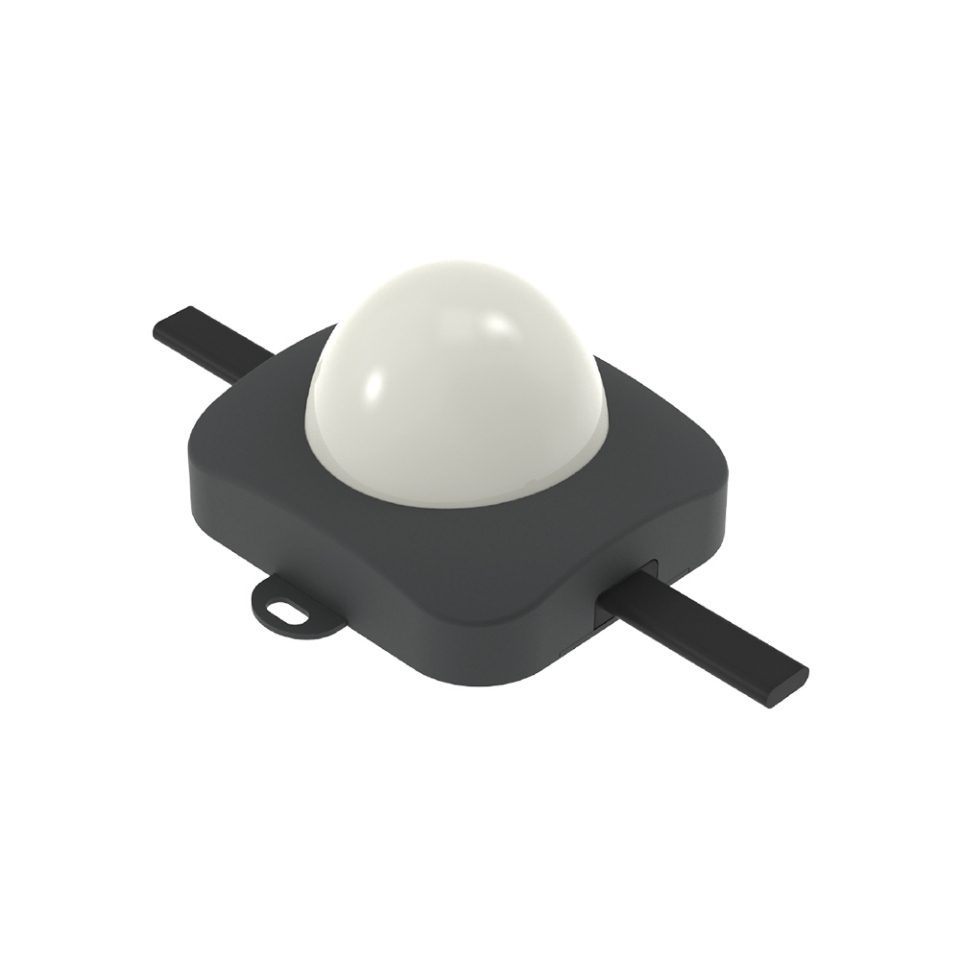

Dot Light 3W

  • Range:
    Dot Lights
  • Code:
    JQL-BLK-DTL03W
  • Description:
    • Luminous Flux 200 lm @4000K
    • Power Consumption 3W
    • Beam Angle (50%Imax) 110° / 160°
    • Color Temperature 2700K / 3000K / 4000K / 5000K / 5700K / 6500K / RGB / RGBW
    • LED Brand CREE/ NICHIA/ OSRAM/ LUMILEDS
    • Input Voltage DC24V
    • Protection Class IEC III
    • Control DMX / RDM / DALI / Remote / ON-OFF
    • Power Factor ≥0.95
    • Pixel 8
    • Finish Powder coating / Anode oxidation
    • Housing Die-cast aluminium ADC12
    • Diffuser High strength optical PC
    • Dimensions ø52xH90mm / W80xH50mm / W70xH50mm
    • IP Rating IP65/IP66/IP67/IP68
    • IK Rating IK06 / Ik07
    • Mounting Side bracket
    • Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
    • Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
    • THD <10%
    • Lifespan >50,000Hrs (Ta=35°C@L70)
    • Certificate BIS / CE / RoHS
MRP Price on request

DOWNLOADS:

Disclaimer:

  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
